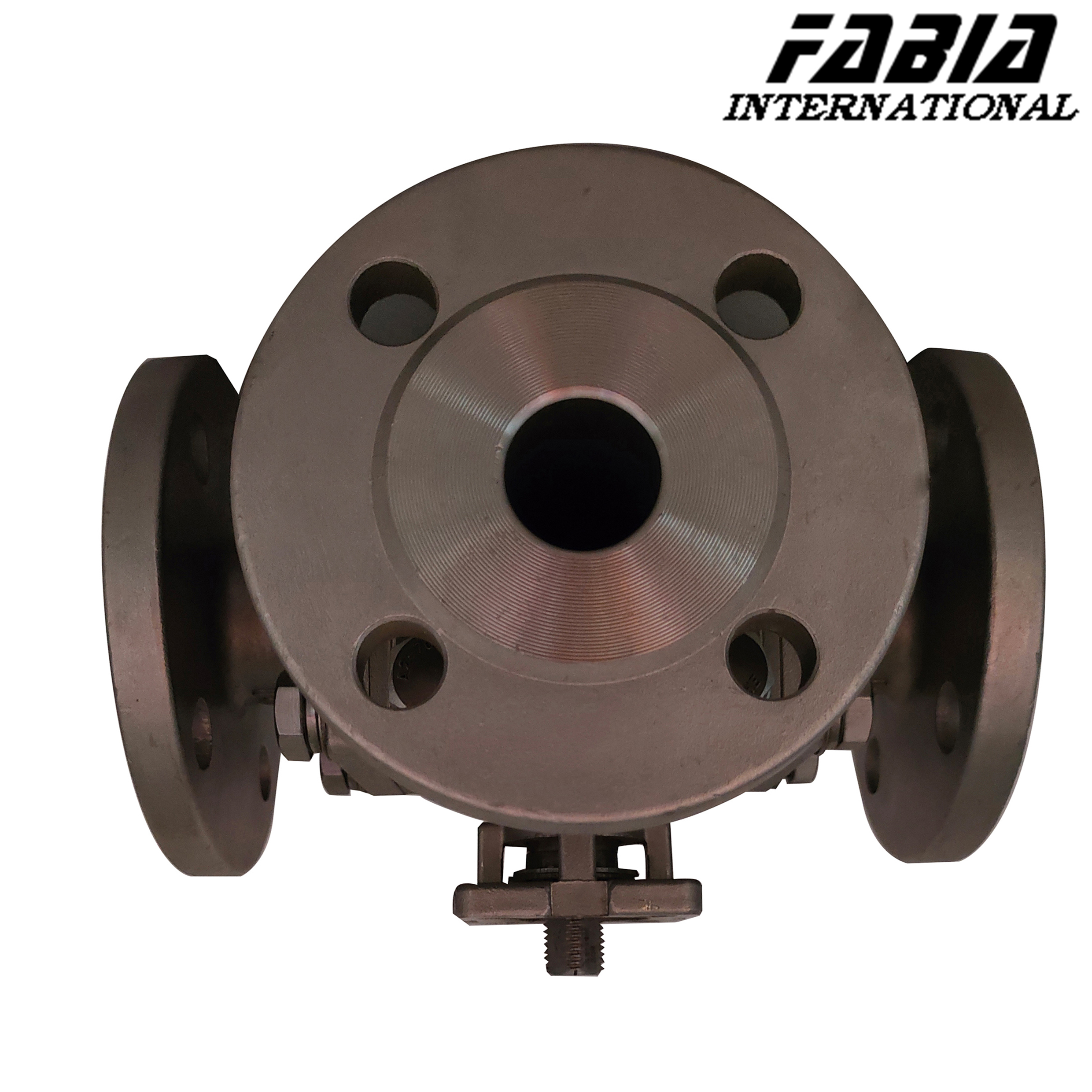

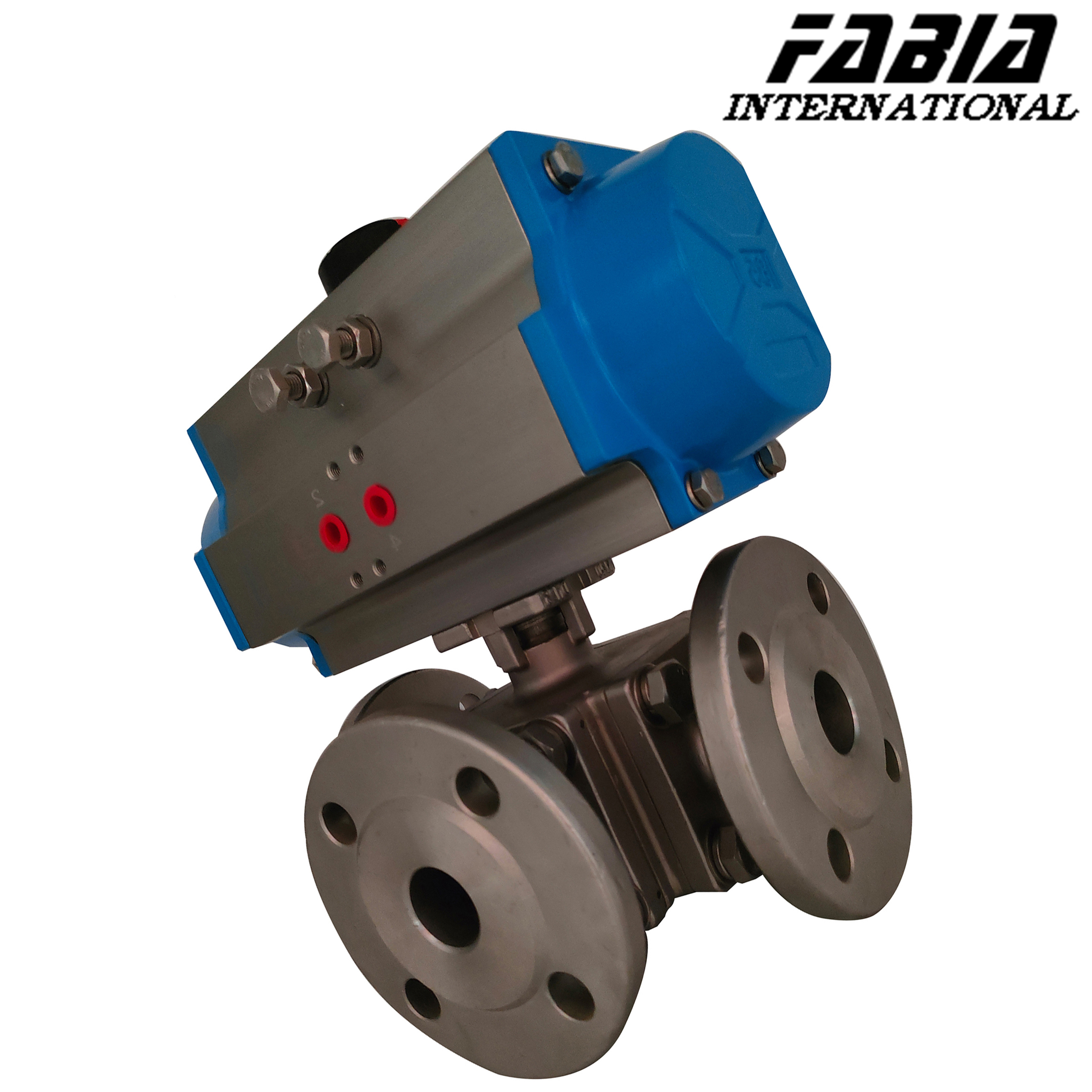

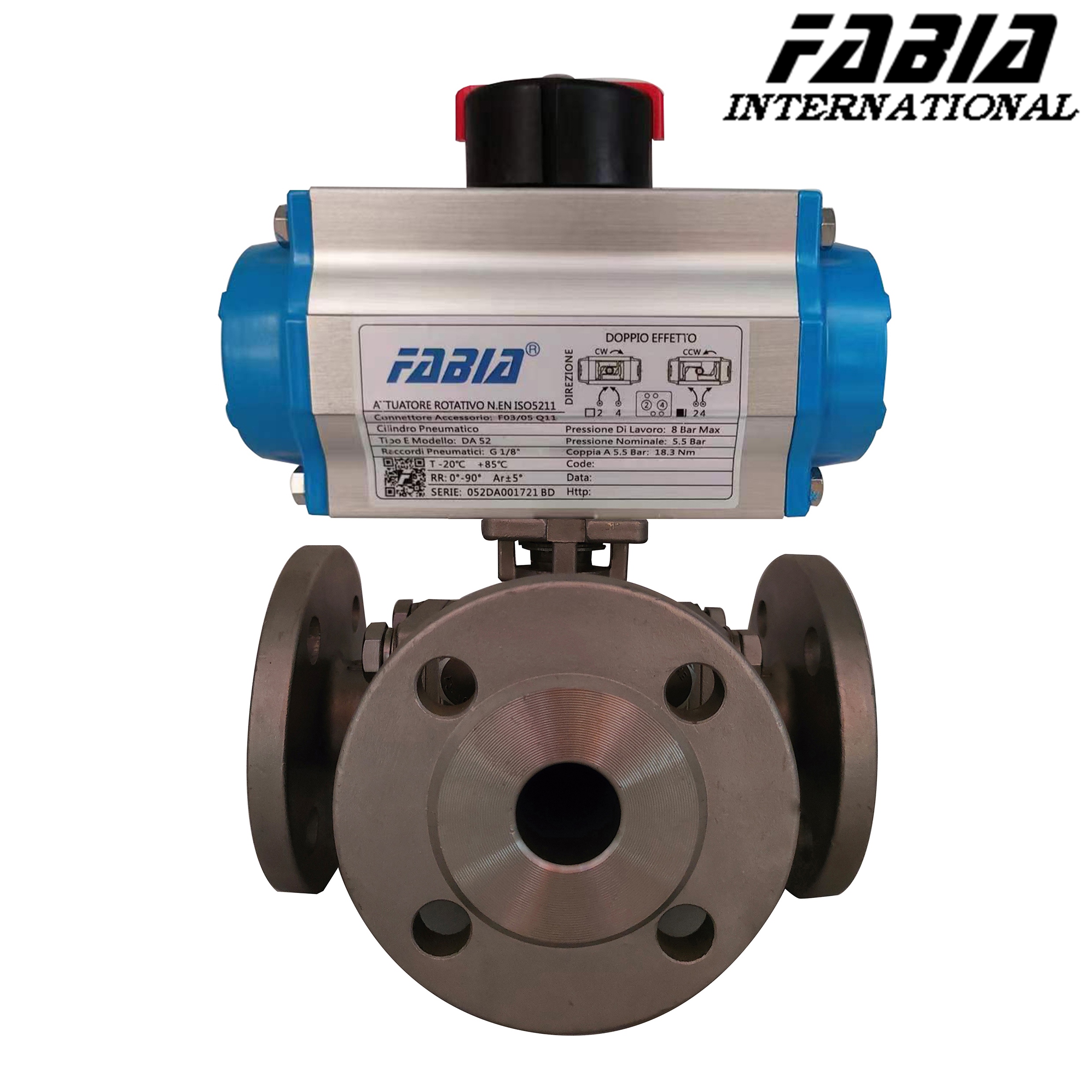

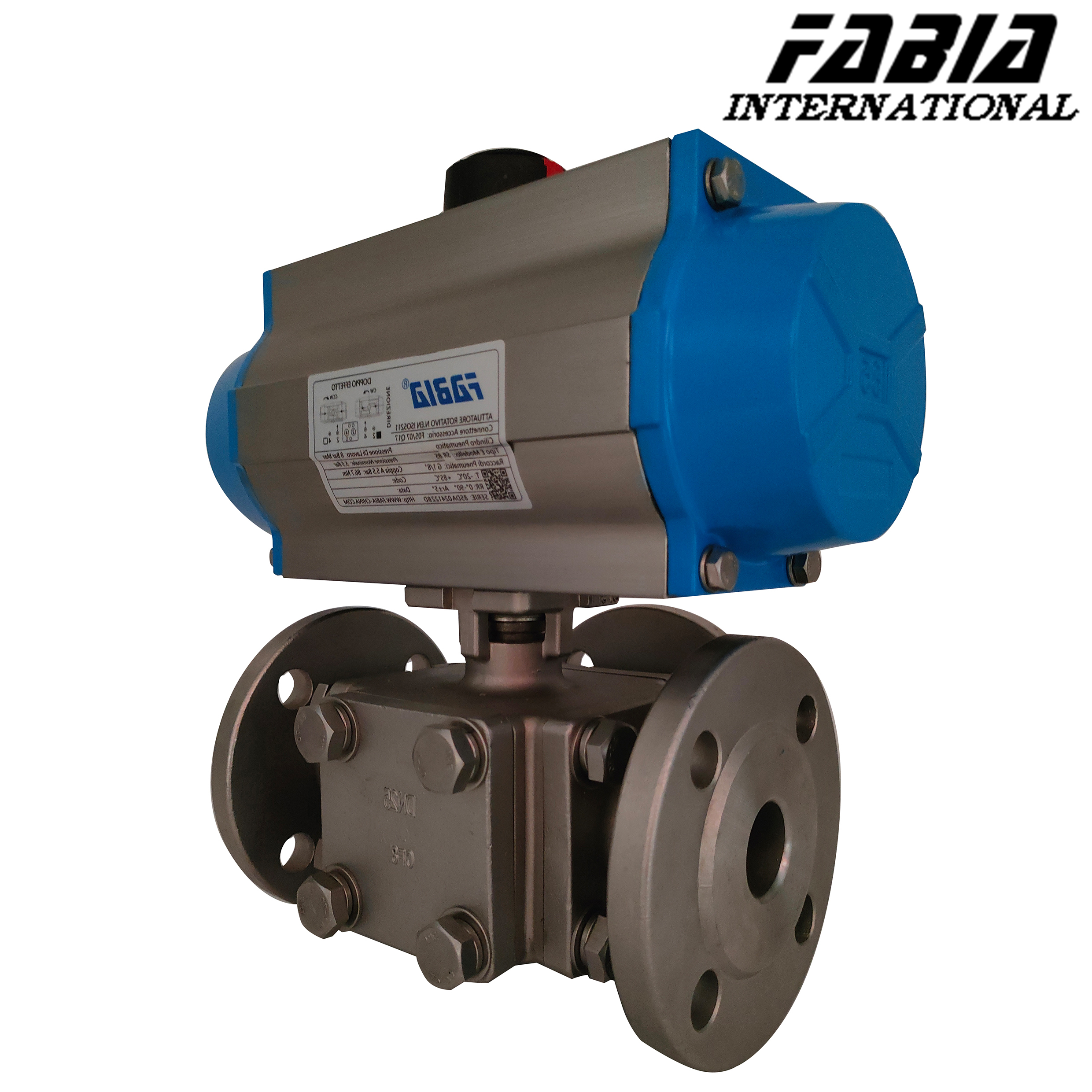

Pneumatic three-way flange Ball Valve For Chemical, Petroleum, Electric Power

  • Pneumatic three-way flange Ball Valve For Chemical, Petroleum, Electric Power
  • Pneumatic three-way flange Ball Valve For Chemical, Petroleum, Electric Power
  • Pneumatic three-way flange Ball Valve For Chemical, Petroleum, Electric Power
  • Pneumatic three-way flange Ball Valve For Chemical, Petroleum, Electric Power
  • Pneumatic three-way flange Ball Valve For Chemical, Petroleum, Electric Power
Miejsce pochodzenia CHINY
Nazwa handlowa FABIA
Orzecznictwo ISO9001,CE,CCS,DNV
Numer modelu 1/8 cala ～ 36 cali
Dokument Broszura produktu w wersji PDF
Minimalne zamówienie 1 zestaw
Cena negocjowalne
Szczegóły pakowania Kartony/drewniane skrzynie
Czas dostawy 15-30 dni roboczych
Zasady płatności L/C, D/A, D/P, T/T, Moneygram, Western Union
Możliwość Supply 100-1000 ustawionych tygodniowo

Skontaktuj się ze mną o darmowe próbki i kupony.

WhatsApp:0086 18588475571

czat: 0086 18588475571

Skype'a: sales10@aixton.com

W razie jakichkolwiek wątpliwości zapewniamy całodobową pomoc online.

x
Szczegóły Produktu
Nazwa produktu Pneumatyczny 3-drogowy zawór kulowy Typ zaworu Pneumatyczny zawór kulkowy
Tworzywo stal nierdzewna Działanie Pneumatyczny
Połączenie Gwintowane Ciśnienie 150-600 psi
Aparat Pneumatyczny siłownik Siedziba PTFE
Temperatura -30°C~+150°C Połączenie końcowe Gwintowane
Zostaw wiadomość
opis produktu

FABIA Pneumatic Ball Valve For Chemical, Petroleum, Electric Power



1.  Description:



Pneumatic three-way ball valve, widely used in chemical, petroleum, power, food, medicine, refrigeration, aviation, aerospace and other industrial fields.



Three-way ball valve, for medium diversion, confluence, flow direction switching, any pipe can be used as an entrance or exit.



Pneumatic three-way ball valve is divided into pneumatic three-way L-type ball valve and pneumatic three-way T-type ball valve, which can meet different production process requirements.



2.Specification:



FABIA Valve Parameter List
Valve type: Pneumatic Ball Valve For Chemical, Petroleum, Electric Power
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........



3. Features:



  • The fluid resistance is small, and its resistance coefficient is equal to that of the pipe segment of the same length.
  •  Simple structure, small size and light weight.
  • Tight and reliable, the sealing surface material of the ball valve is widely used in plastic, good sealing, and has also been widely used in vacuum systems.
  •  Easy to operate, open and close quickly, from full open to full close as long as the rotation is easy to control at a distance.
  •  When fully open or fully closed, the sealing surface of the ball and the seat is isolated from the medium, and the medium will not cause the erosion of the sealing surface of the pneumatic three-way ball valve when it is passed.
